Sunergy is an official Victron distributor.  We have been installing Victron products for Off-Grid, Energy Storage and RV for several years.

Victron hallmarks include innovation, quality, high efficiency and reliability.

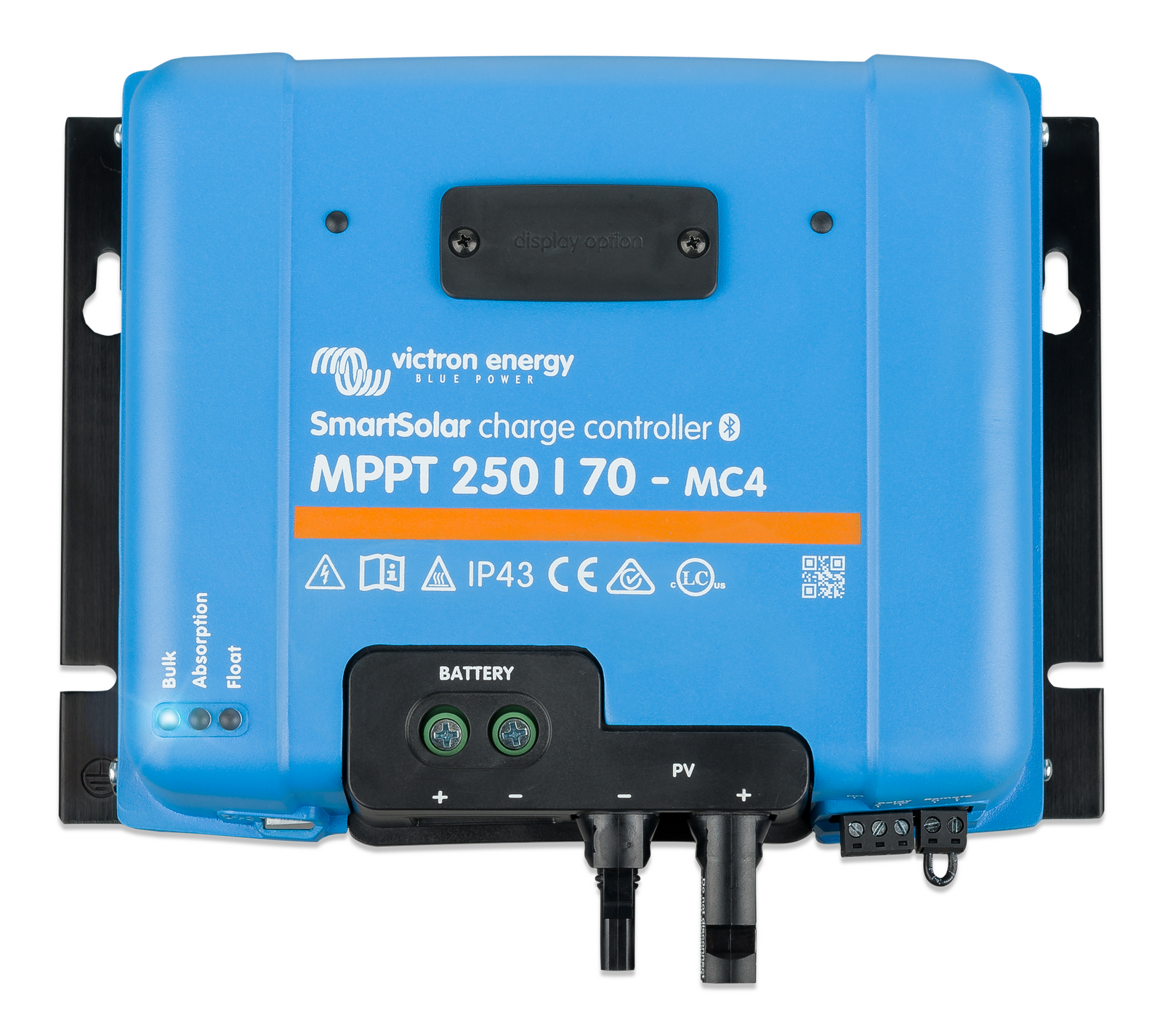

Solar Charge Controller

A solar charger manages optimum battery charging from your solar panels.  Using the latest, fastest technology, SmartSolar maximizes this energy harvest, driving it intelligently to achieve the full charge in the shortest possible time.  SmartSolar maintains battery health, extending its life.

MPPT:  Ultra-fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage.  The advantage of this is most noticeable when the sky is partially clouded and light intensity is constantly changing.

Remote Monitoring And Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via the VictronConnect app.  No dongle is required.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices.

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with an integrated disconnect function.

Parallel Operation via Bluetooth

Up to 10 units can be synchronised with Bluetooth.  A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in the case of a BMV 712 or a SmartShunt) to one or more SmartSolar Charge Controllers.

Optional SmartSolar Control Display

By adding the SmartSolar Control Display, you can check the status of your charger and battery storage at a glance. Simply plug it into the face of your MPPT charge to provide you with real-time monitoring and setup capabilities.

Enclosure:

Colour:  Blue (RAL 5012)

Power terminals:  35mm/AWG 2

Protection category:  IP43 (electronic components) IP22 (connection area)

Dimensions:  215mm (H) x 250mm (W) x 95mm (D)

Warranty:  5 years

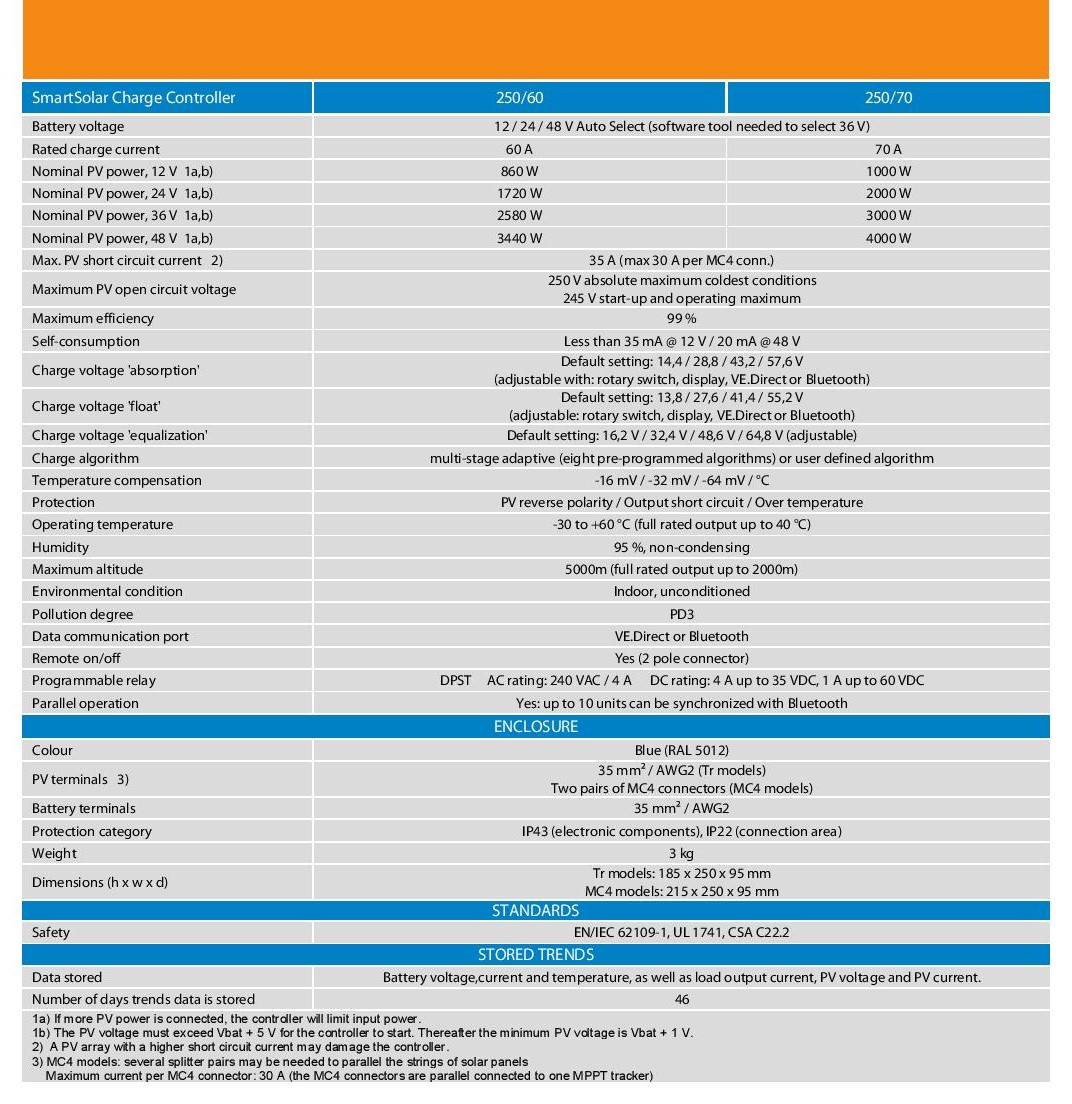

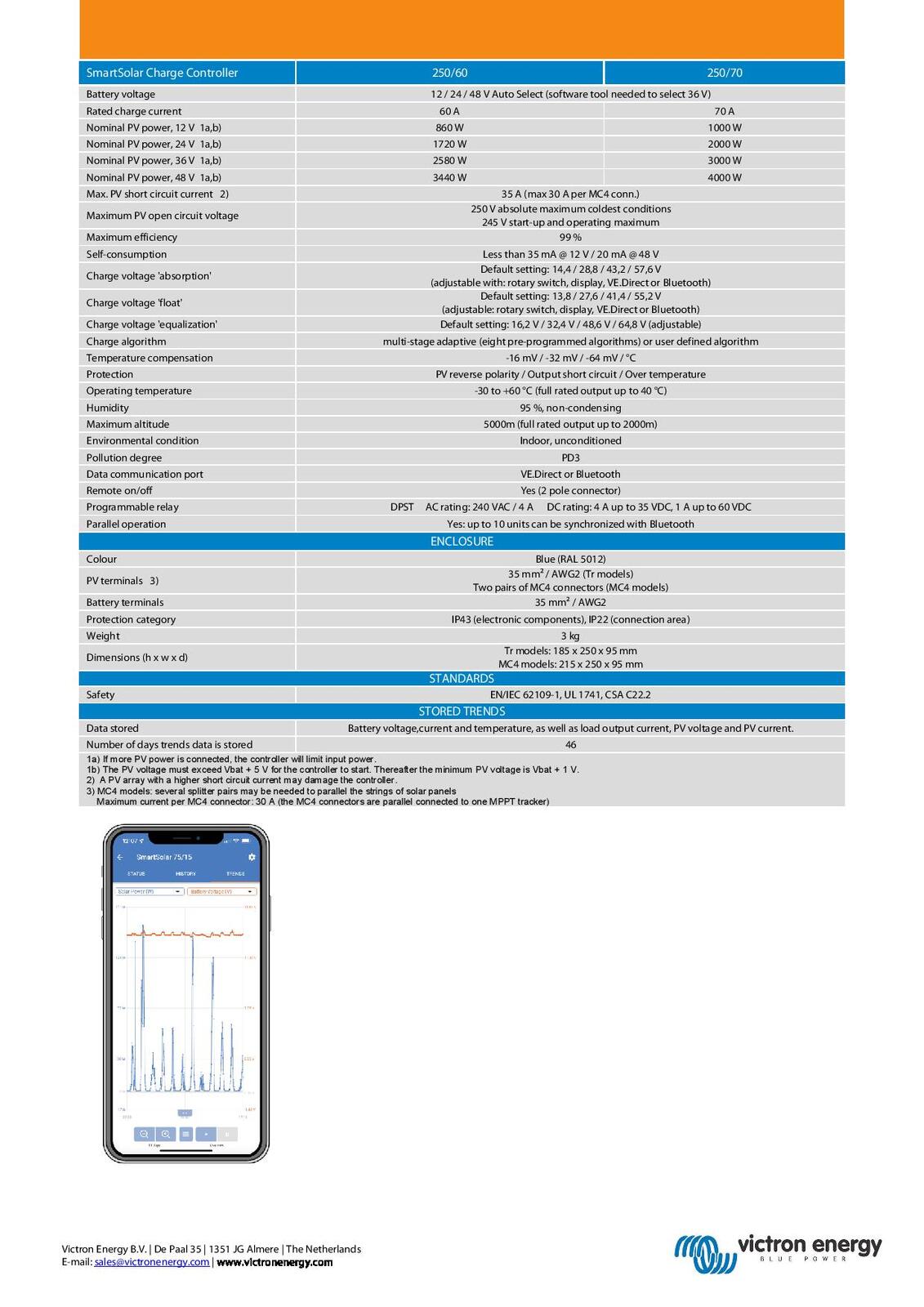

SPECIFICATIONS:
