**48V DC / 5000VA / 100A charge/ 230V AC**

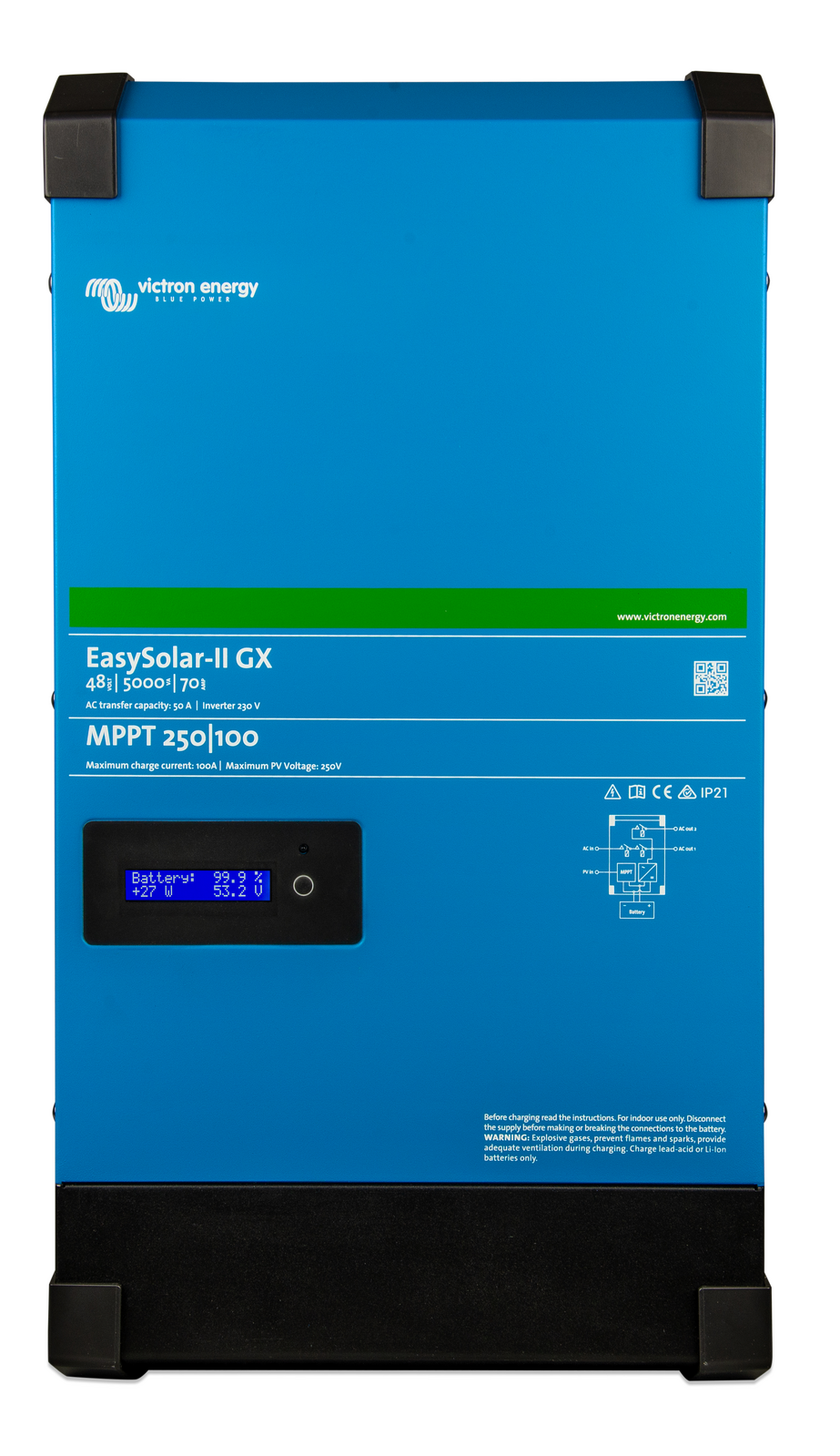

EasySolar all-in-one solar power solution

The Victron EasySolar-II GX integrates the following elements:

• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16-character display.

These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and WiFi:  The display reads battery, inverter and solar charge controller parameters.  The same parameters can be accessed with a smartphone or other Wi-Fi-enabled device.  In addition, Wi-Fi can be used to set up the system and to change settings.

Solar charge controller:  The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.  The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device:  The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port
• An Ethernet port
• A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
