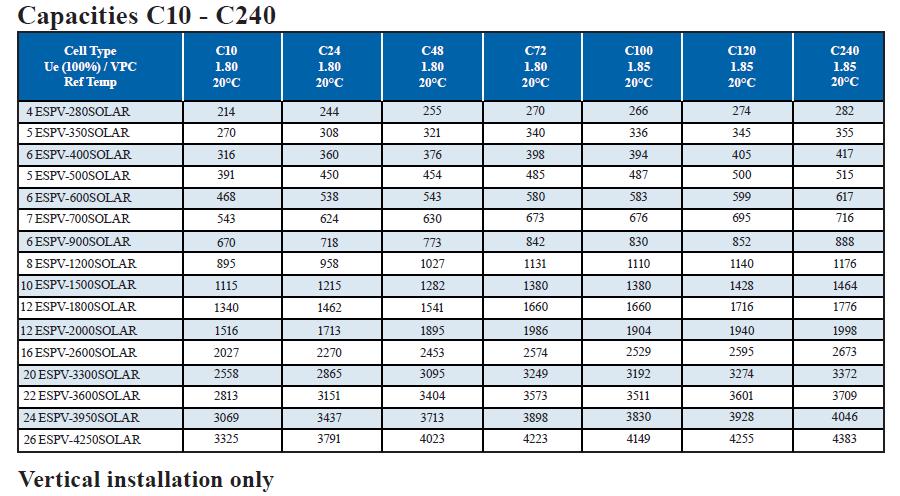

Valve regulated tubular gel cell battery with 830Ah storage capacity @ C100 (670Ah @ C10).

These are for upright vertical installation only.  If you need horizontal installation, please refer our range of Sonnenschein Gel batteries.

Features:

• Positive Plate:  High energy density tubular design with lead calcium alloy ensures low self-discharge rates and low float currents
• Terminal:  Maintains an airtight seal even when the plates expand and grow throughout the lifetime of the cell
• Negative Plate:  Industry leading negative plate design
• Electrolyte:  Silica-based gel electrolyte that is maintenance free
• Separator:  High-porosity and corrosion-resistant ensures maximum capacity for the lifetime of the cell
• Pressure Relief Valve:  Opens at high pressure to release hydrogen gas created during operation
• Gauntlet:  Non-woven, high-capacity polyester gauntlet
• Container & Lid:  Manufactured from Acrylonitrile-Butadiene-Styrene (ABS) which is durable and heat resistant
• High energy density and cyclic performance
• Robust tubular positive electrode design, compliant with DIN 40742
• 1500 cycles at 80% D.O.D at 20°C
• Low self discharge rate allows for up to 2 years shelf life
• Operating temperature -20°C to +45°C
• EUROBAT design life: Long life > 10 years
• Fully recyclable with low CO2 footprint
• Compliant with IEC 60896 - 21 / 22 / IEC 69427
• Maintenance-free (no topping up) during entire service life
• No contamination or corrosion due to leaking electrolyte
• Very low self-discharge
• Extremely low gassing during operation

These come as 2V cells, so you should order:

• 12V system - 6 cells
• 24V system - 12 cells
• 48V system - 24 cells
• 120V system - 60 cell

​​
